***CUSTOM E-BIKES AND CONVERSIONS***
Would you like a custom built, heavy duty and high performance e-bike (or limited speed motorcycle) that could save you a fortune in automotive expenses? I can help you build one. We can start with a pair of moped rims and tires that can manage higher speeds and weights and are impervious to flats. We will use a bike frame that has plenty of room for battery and cargo. Affordable, efficient and practical transportation that will last a life time.
Are you interested in an e-bike and want to spend less than $2000 ? The best way to go is
with a conversion kit. You can get a top quality kit and decent battery for $1500. All you
need is a comfortable, sturdy bike. You will have a faster, more versatile bike with quality
electronics that can be easily upgraded or moved.
BIKE FRAMES : $500 - $1000
QUALITY COMPONENTS: $800 - $1000
( OR BUY A USED BIKE THAT HAS THE FRAME YOU WANT )
CONVERSION KITS: $500 - $1000
BATTERIES: $500 - $1000
UPGRADE TO MOPED RIMS & TIRES: $200
LABOR + $175 - $675.
* A kit built bike will likely have more power, speed, and versatility than something bought off the shelf
***BIKE TUNE-UPS AND REPAIRS DONE AT YOUR CONVENIENCE***
Tune-ups : ( one bike $30 / Several bikes $40 / hr )
True wheels, pump tires, oil chain, adjust brakes and gears, safety check, and replace parts as needed.
Wheel building and spoke replacement, Assembly from box, specific repairs.
** ENVIRO FRIENDLY ULTRASONIC WASHER **
Clean drive train and wax chain $40
Clean drive train and oil chain $25
Tune up + Clean drive train and wax chain $60
Tune up + Clean drive train and oil chain $50
( Remove chain and clean with ultrasonic wash + oil or wax. Wipe down chain rings and cluster )
Tune up + Bleed brakes $60
Build, repair, and balance e-bike batteries. Diagnosis, basic bike repairs and kit installs.
Note: At my place, $40/hr - no minimum charge. At your place, $40/hr - $60 minimum charge.
I can pick up and deliver if needed.
CYCLE and RECYCLE. Be an ENVIRONMENTALIST !
Electric bike conversions:
Buy an e-bike conversion kit from EBIKES.CA (or BAFANG) and I will do the conversion work for you.
Wheel build - $80 / ABS battery box - $75 / Conversion work $40 / hr - max $100.
WHEELS FOR YOUR EBIKE
I can build heavy duty wheels for your ebike with D.O.T. certified moped tires (motorcycle tires). These tires are designed for the speed and weight of a small motorcycle. A smooth, secure ride and far more puncture proof than bicycle tires - you won't be fixing flats by the side of the road anymore.
Bike above is designed for 26-inch rear wheel and 24-inch front. It has been modified with a 22-inch moped wheel on the rear and a 21-inch on the front.
WHY AN EBIKE KIT IS BETTER

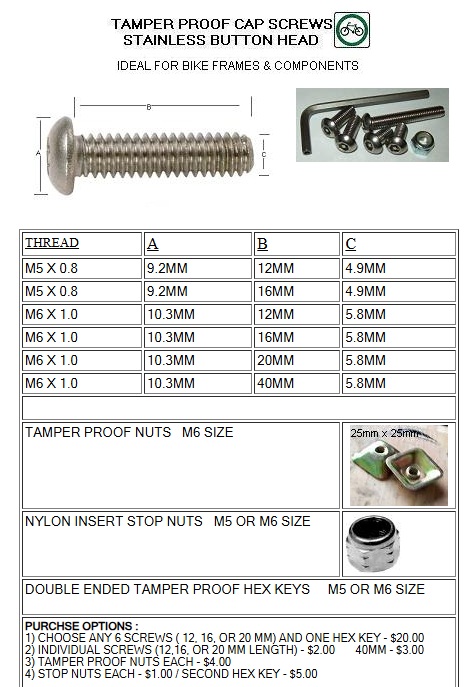

PROOF CAP SCREWS / 3D ALARM
GPS TRACKING - $6 / MONTH
| RECOMMENDED TIRE SEALANT -
you have an e-bike battery that needs some attention?
-Build, repair, and balance e-bike batteries
-Build new Li-ion packs : $3 / cell (Welding)
-Balance battery packs : $80 - $120
-Capacity testing: $10
-Cell replacement : $30 / cell
-Replace BMS: $60
It costs this much to build a battery (with new BMS but no case -18650 cells) :
(Voltage / 3.6) x (Capacity / 3.5) x $11 + $90
i.e. A 36v, 14 amp hour battery with bms will cost (10 x 4) x $11 + $90 = $530.
Currently using LG MJ1(18650) and LG M50T(21700) cells.
Building with M50T cells will be somewhat less:
(Voltage / 3.6) x (Capacity / 5.0) x $13 + $90
i.e. A 36v, 15 amp hour battery with bms will cost (10 x 3) x $13 + $90 = $480.
If you supply the cells, then $3/ cell + $90.
If I supply the cells, then one year warranty included.
Maximum discharge rate: The MJ1 is a 10 amp cell and the M50T is 15 amp.
The Max rate for a MJ1 pack: (10/3.5) x Capacity. For a M50T pack: 3 x Capacity.
